产品分类：小型防水船形开关

规格参数
额定值: 120VAC 5A和28VDC/250VAC 2A
功率：Dependent upon contact material
机械寿命: 30,000 make – and – break cycles.
接触电阻: 10 mΩ max .initial @ 2-4VDC 100mA for both silver and gold plated contacts.
绝缘电阻: 1,000MΩ min.
绝缘强度: 1,000V RMS min@sea level.
工作温度范围: -30℃ to 85℃.

使用材质

外壳&铜头: Glass filled nylon 6/6,flame retardant,heat stabilized(UL94V-0).
翘板: Nylon, black std.internal O-ring seal standard with all actuactors.
框架: Spring steel, black std
支撑支架: Brass or steel , tin plated.
操作安装支架: Nylon
安装框架固定片：Stainless steel
端子/弹片: Silver or gold plated copper ally.

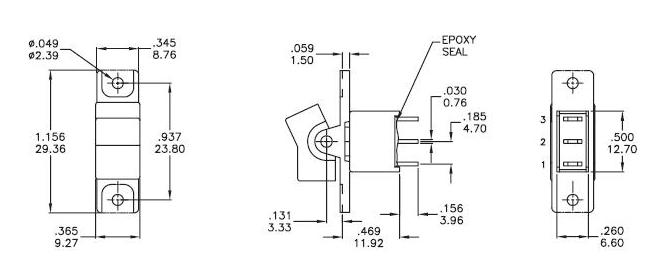

3A基本尺寸




防水船形开关-3A Series
