产品类型：扁平框架安装微型船形开关

规格参数
功率: Dependent upon contact material.
机械寿命: 40,000 make – and – break cycles.
接触电阻: 10mΩ max .initial @ 2-4VDC 100mA for both silver and gold plated contacts.
绝缘电阻: 1,000MΩ min.
绝缘强度: 1,000V RMS min@sea level.
工作温度范围: -30℃ to 85℃.


使用材质
外壳: Diallyl phthalate（DAP) (UL94V-0).
翘板: Nylon, black std.
铜头: Brass or zinc, nickel plated.
框架: Stainless steel.
支撑支架:Brass,tin plated.
端子/弹片: Brass,with Silver or gold plated .

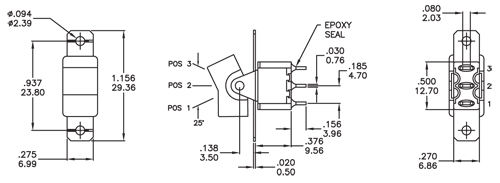

3M基本尺寸



船形开关-3M Series
