尺寸:10x10mm
产品类型：旋钮编码开关

规格参数
机械寿命: 200mΩ max. 20,000 steps
操作力: 200gf Cm max.
操作温度: -25℃ to +80℃
存储温度: -40℃ to +85℃
电气寿命: 200mΩ max. 20,000 steps
断开额定值: 100mA, 50VDC
合闸额定值: 24VDC, 25mA
接触电阻: (a) 100mΩ max. (initial)
(b) 200mΩ (final – after test)
绝缘电阻: 100MΩ min. at 250VDC
耐电压: 250VAC for 1 minute

使用材质
底座与上盖: UL 94V-0 Nylon Thermoplastic
颜色: Black
操作柄: UL 94V-0 LCP Thermoplastic
颜色: White
接点: Alloy copper with gold plated over nickel
脚位: Brass with gold plated

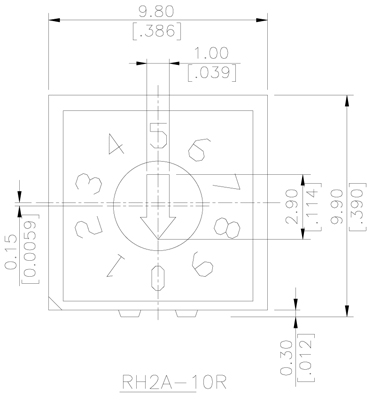

基本尺寸

旋转编码开关SRH/SRV/SRM
