2档电源锁钥匙开关(Φ12mm)

[ 时间:2016-05-17 点击: ]
规格参数

· Zinc alloy die cast housing and cylinder.
· Bright chrome plated standard.
· 4 pin tumbler mechanism.
· Zinc alloy tubular keys, chrome plated.
· Key may be withdrawn in one or both positions.
· Silver plated contacts and terminals.
· S106 2 position (off-on) 2 terminals.
· S116 2 position (on-on) 4 terminals.
· S106M 2 position (off-on) 2 terminals, spring loaded for momentary contact.
· Hex nut mounted.
· All keyed alike or one combination per 100pcs standard.
· 200 combinations available.

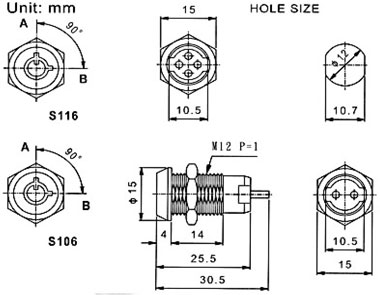

钥匙开关-S106尺寸
S106尺寸



2档电源锁钥匙开关(Φ12mm)
